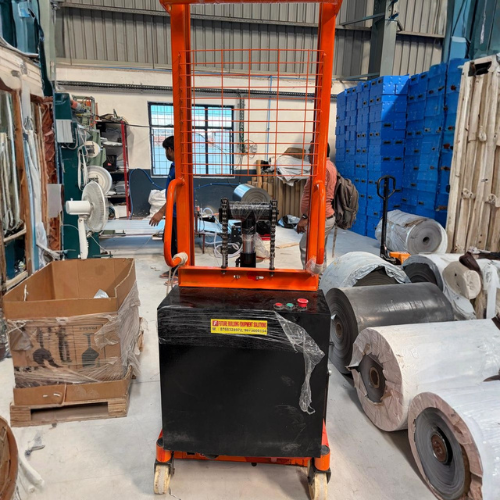

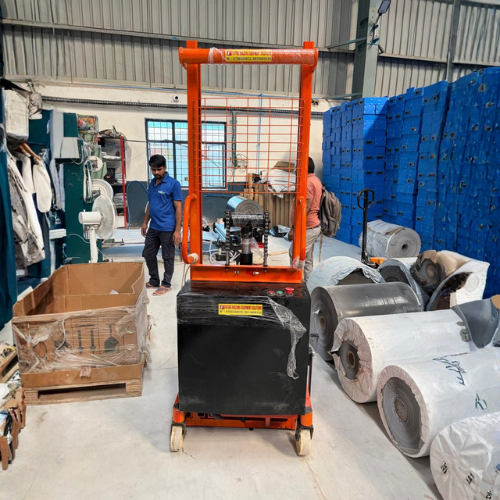

The Semi Automatic Stacker from Future Building Equipment Solution combines power-assisted lifting with
easy manual movement, making it an ideal cost-effective solution for medium-duty stacking and loading applications.
Featuring an electric hydraulic pump powered by a heavy-duty battery, it takes the physical effort out of lifting heavy loads
while maintaining precise control in tight warehouse spaces.
Engineered with a robust C-channel steel mast, ergonomic push handles, and smooth-rolling polyurethane wheels, this stacker
ensures exceptional stability, low maintenance, and enhanced operator safety. It is widely used in warehouses, manufacturing plants,
and retail distribution centers for stacking pallets onto racks and mezzanine levels.
| Minimum Order Quantity | 1 Piece |
|---|---|
| Load Capacity | 1000 Kg / 1500 Kg / 2000 Kg |
| Lifting Height | 1600 mm - 3500 mm (Customizable) |
| Fork Length | 1150 mm |
| Adjustable Fork Width | 330 mm to 740 mm |
| Lowered Fork Height | 90 mm |
| Lift Motor Power | 1.5 kW / 12V or 24V DC |
| Battery Specifications | 12V / 120Ah or 24V / 100Ah Lead-Acid Battery |
| Lifting Mechanism | Electro-Hydraulic Pump |
| Driving Mechanism | Manual Push / Pull |
| Wheel Type | Heavy-Duty Polyurethane (PU) with Foot Brake |
| Control Unit | Key Switch, Emergency Disconnect, Lift Controls |
| Charger | Built-in / External Automatic Smart Charger |
| Structure Material | Heavy-Duty Industrial Mild Steel |
| Finish | High-Gloss Powder Coating |
| Warranty | 1 Year Manufacturing Warranty |
